Industry Profiles

Dock Shapes

Gang Plank Beams

In maritime operations, port facilities, and shipping logistics, the structural integrity and functionality of docks and gangways are paramount. Two critical components in these systems are dock shapes and gang plank beams. These elements are designed to facilitate the safe, efficient, and smooth transfer of cargo and personnel between ships and shore facilities.

In this profile, we will delve into the different types of dock shapes used in marine infrastructure, as well as the importance and design considerations for gang plank beams that connect vessels to docks.



Die # Size Est. Wt/Ft
A B T
43815 5.062 2.030 .0137 1.984
43816 5.247 2.030 .0137 2.083
43817 5.298 2.030 .0137 2.192

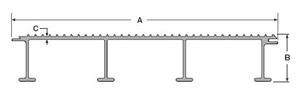

Dock Shapes Diagram

43815

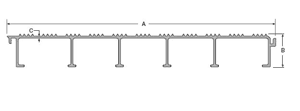

Dock Shapes Diagram

43816

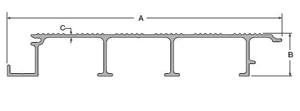

Dock Shapes Diagram

43817

Planks

Die # Size Est. Wt/Ft
A B C
43818 9.500 2.062 0.080 1.835
43819 12.000 1.060 0.110 2.852
Dock Shapes Diagram

43818

Dock Shapes Diagram

43819

Support Beams

Die # Size Est. Wt/Ft
A B C
43820 8.000 2.030 0.137 2.490
43821 9.062 2.030 0.137 2.678
43822 9.500 2.030 0.137 2.750
Dock Shapes Diagram

43820

Dock Shapes Diagram

43821, 43822

Ladder Plank

Die # Size Est. Wt/Ft
A B C
43823 4.084 1.562 0.125 1.375
Dock Shapes Diagram

Dock Connector

Die # Size Est. Wt/Ft
A B C
43824 2.522 2.730 0.250 2.496
Dock Shapes Diagram

Floor Section

Die # Size Est. Wt/Ft
A B C
43825 8.902 2.030 .0140 2.665
Dock Shapes Diagram

Cross Member Support

Die # Size Est. Wt/Ft
A B C
43826 6.000 2.250 .0150 1.927
Dock Shapes Diagram

Cross Member Support

Die # Size Est. Wt/Ft
A B C
43827 8.511 1.500 0.094 1.835
43828 12.250 1.500 0.094 2.857
43829 6.813 1.062 0.070 1.114
Dock Shapes Diagram

43827

Dock Shapes Diagram

43828

Dock Shapes Diagram

43829

Request a quote
Want to view More Open Die Selections? Back to Catalog
